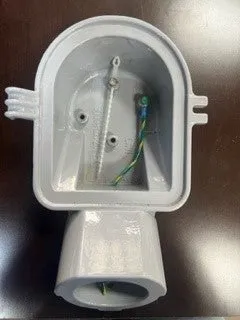

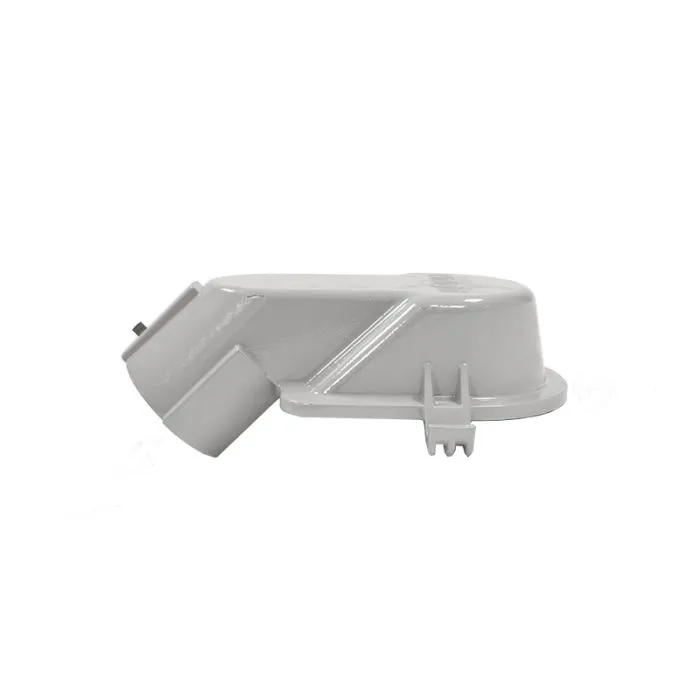

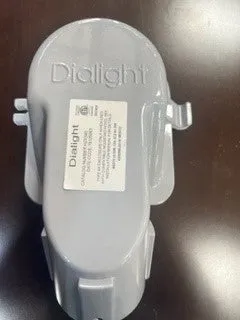

Dialight HZXS45 LED Light Area Stanchion Mount 45 Degree Bracket-New Surplus

Ready To Ship Next Business Day

Angle: 45 Degree; Type of Part: Bracket; Used With: Dialight Vigilant Area Lights

Electrical Specifications: Operating voltage: 100-277 VAC 50/60 Hz, 120-250 VDC Operating temperature: -40°F to 149°F (-40°C to 65°C) EMC: FCC Title 47, Subpart B, Section 15, Class A device CISPR-15 RF Immunity 20V/m 80MHz-1GHz. Transient protection: 6 kV, 2 Ohm line-line and line-ground Harmonics: IEC 61000-3-2, Class C THD: < 20% Power factor: > 0.9

Fixture weight: UMA models: 12 lb (5.5 kg) - Polycarbonate lens 15 lb (6.8 kg) - Tempered glass lens Wall mount models: 15 lb (6.8 kg) - Polycarbonate lens 18 lb (8.2 kg) - Tempered glass lens 45° wall mount models: 14 lb (6.4 kg) - Polycarbonate lens 17 lb (7.7 kg) - Tempered glass lens 45° stanchion mount: 15 lb (6.8 kg) - Polycarbonate lens 18 lb (8.2 kg) - Tempered glass lens Ceiling mount: 14 lb (6.4 kg) - Polycarbonate lens 7 lb (7.7 kg) - Tempered glass lens Shipping weight: Add 2 lb (0.91 kg) to weights above Impact rating: IK10 - Polycarbonate lens IK07 - Tempered glass lens Cabling: 14” leads 1.02 mm 18 AWG

Specifications

Dimensions
0° Wall Mount
45° Wall Mount
45° Stanchion Mount

Used for Models

HZXW01
HZXW45

HZXS45
